Product Introduction

MGM provides a comprehensive sealing solution for the insulating glass industry with our high-performance Butyl Sealant and Hot Melt Sealant. These two sealants play distinct, complementary roles in creating durable, long-lasting IGUs. Our Butyl Sealant serves as the indispensable primary seal. This thermoplastic material is extruded directly onto the spacer in a continuous, uniform bead. Its primary function is to form an immediate, highly effective barrier against water vapor and gas transmission. This prevents the desiccant inside the spacer from saturating and safeguards the integrity of the gas fill (e.g., Argon), which is crucial for maintaining the unit's insulating properties over its entire lifespan.

Our Hot Melt Sealant, typically a polysulfide or polyurethane-based compound, acts as the robust secondary structural seal. Applied after the primary seal, it encapsulates the entire spacer and the gap between the glass panes. This sealant is responsible for the mechanical strength of the IGU, providing exceptional adhesion to the glass and spacer, and absorbing structural stresses caused by wind load, thermal expansion, and vibration. It offers outstanding resistance to UV radiation, weathering, and temperature extremes, ensuring the unit remains intact and fog-free for decades. By using MGM's perfectly matched sealant system, manufacturers can be confident they are producing IGUs that meet the highest international standards for longevity, energy efficiency, and structural reliability, delivering peace of mind to builders and end-users alike.



Technical Data
Colour Black
Moisture vapor transmission 0.35g/m²/24hr
Shear Strength (aluminum—glass) ≥0.15MPa
Tensile Strength (aluminum—glass) ≥0.80MPa
Shear adhesion failure temperature 90℃
Low temperature flexibility -30℃
Suggested application temperature 150-170℃

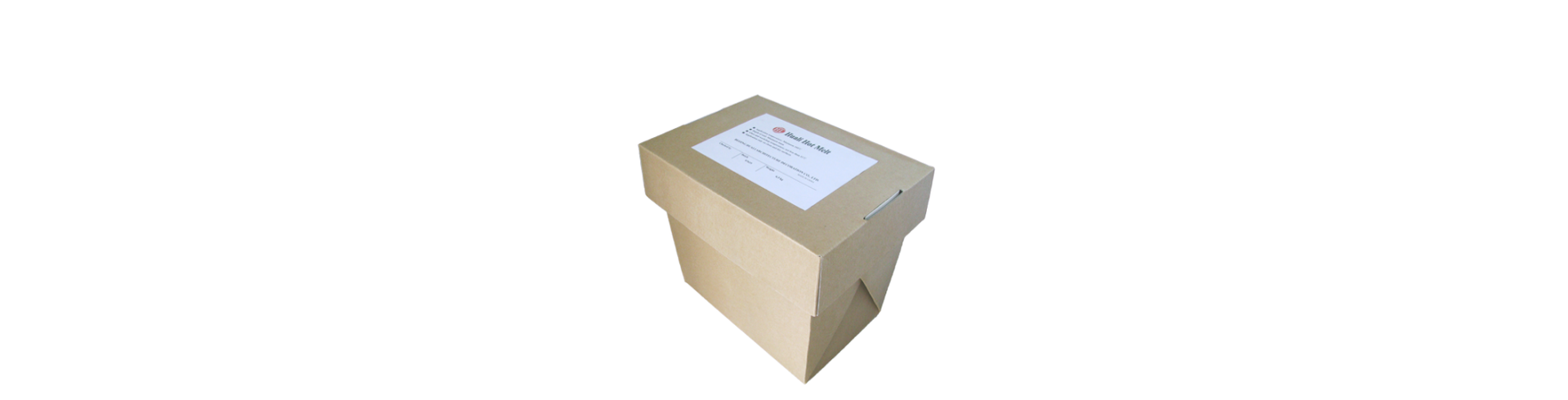

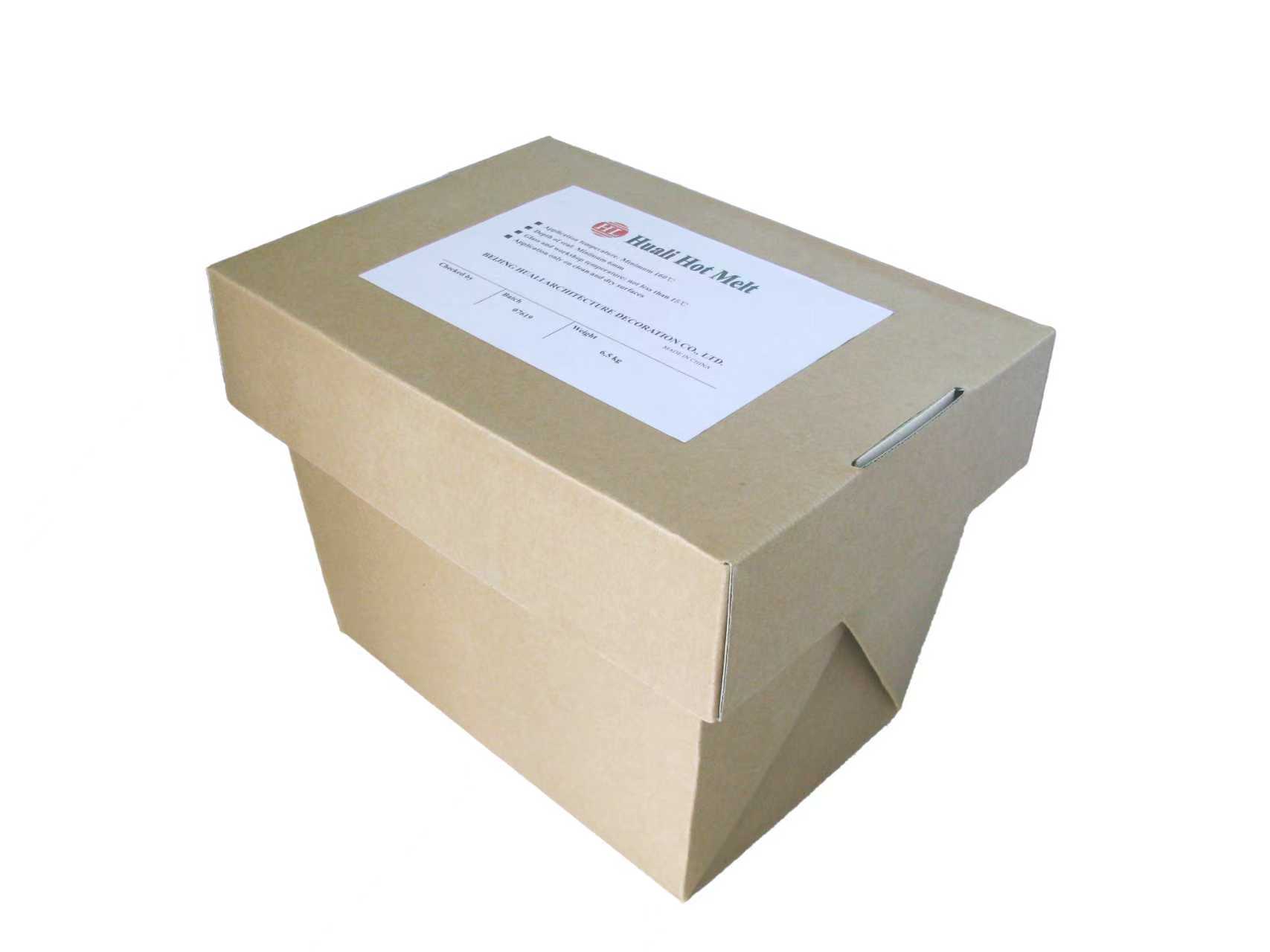

Packaging 1) box -6.5kg/block, 26kg/carton box 2) Steel drum 220kg/drum

Performance

Environmentally friendly high-performance sealant

Superior adhesion with glass and aluminum and enhanced water-proof ability eliminate secondary seal requirement

Instant curing within one minute, reducing production footprint
