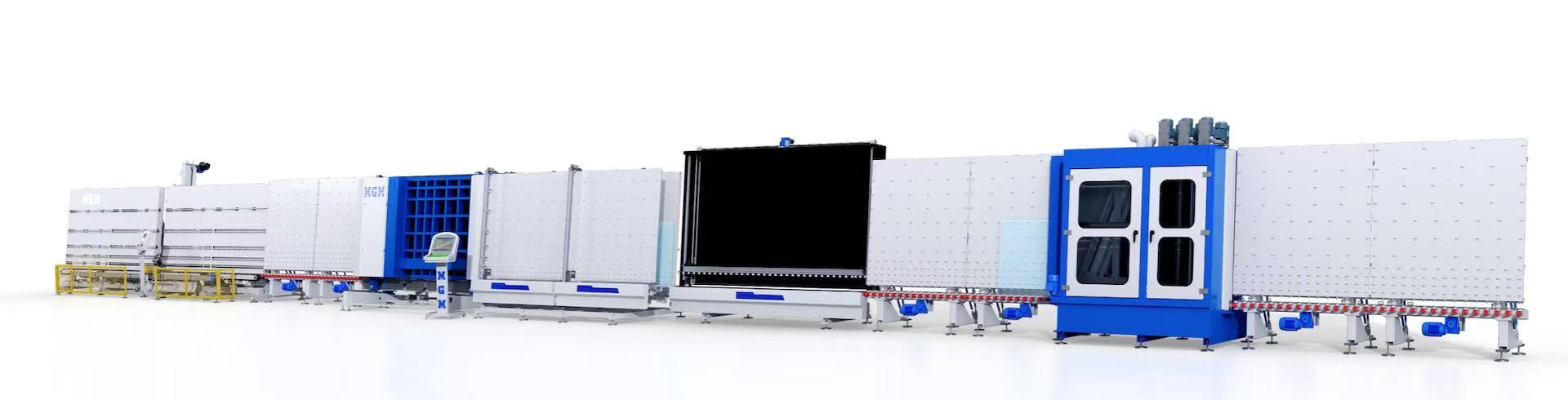

Maximize your factory's output with our innovative Tandem Insulating Glass Production Line. This intelligent design features extended inspection table and doubled assembly table, operating on a synchronized line, allowing for simultaneous processing of same and/or different glass sizes or types. Dramatically reduce idle time and boost production flexibility by performing tasks like spacer assembly and sealing in parallel. It is the ultimate solution for medium to large-scale manufacturers seeking to optimize floor space and/or manufacturers taking bulk commercial orders, increase overall equipment effectiveness (OEE), and effortlessly handle mixed-order batches. Achieve mass production capabilities with the agility needed for a dynamic market.
| Technical Data | ||||
| Model | ZK18/36 | |||
| Min IG Size | 180X360mm | |||
| Max IG Size | 1800X3600mm | |||
| Glass Thickness | 3-18mm | |||
| IG Thickness | ＜56mm | |||
| Washing Speed | 1-10m/min | |||
| Transport Speed | 1-50m/min | |||
| Transport Height | 550-650mm | |||
| Power Supply | ≈75kW | |||
| Tandem Assembly Mode | Processing two IG units simultaneously, Max IG units size 1700mm*1700mm | |||
| IG Types | Double glazing, Triple glazing | |||
| Options | In-panel gas filling | |||
✔ High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
✔ Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection
✔ Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
✔ Tandem inspection station enables simultaneous inspection of two IG units
✔ Tandem spacer placement station with front & rear plate allows simultaneous glass transfer on the rear plate while placing spacers on the front
✔ Tandem gas filling and pressing enables concurrent argon gas filling and lamination of two IG units
