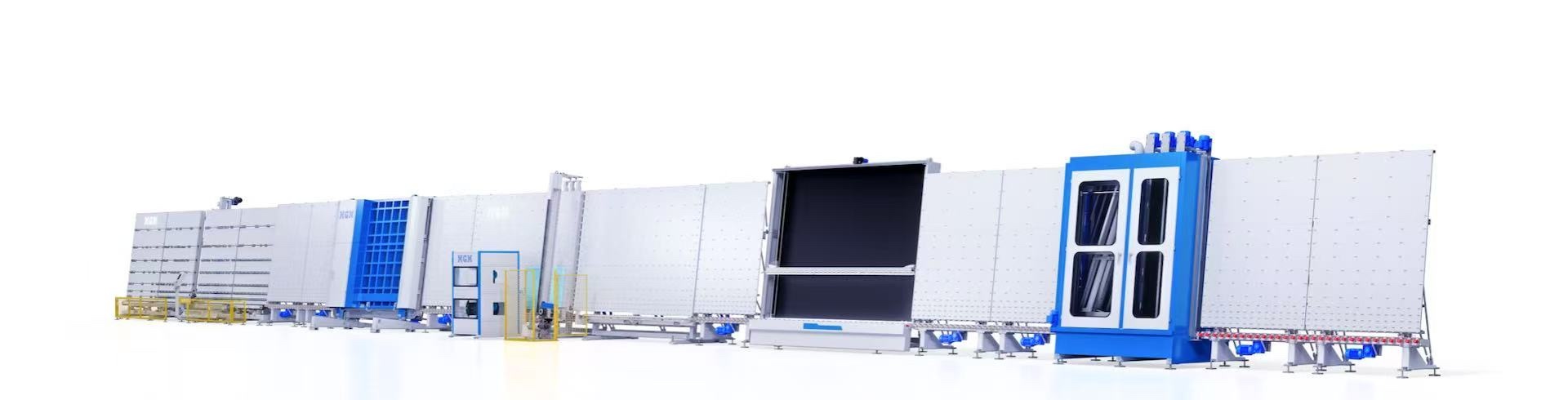

Experience unparalleled production flexibility with our Super Flexible Spacer Insulating Glass Production Line. Designed for the versatile super flexible spacer, this line excels at creating high-quality, custom-shaped IGUs. It simplifies the process of handling delicate and complex spacer profiles, ensuring a perfect, continuous seal without mechanical corner keys. The result is an exceptional thermal break and a clean aesthetic finish. Our SFS insulating glass production line is the go-to solution for manufacturers specializing in architectural, curved, or irregularly shaped insulating glass, enabling you to expand your product offerings and cater to unique project demands with ease.
| Technical Data | ||||
| Min Size | 160*310mm | |||
| Glass Thickness | 3-18mm | |||
| Spacer Width | 6-19mm | |||
| IG Thickness | ＜56mm | |||
| Washing Speed | 1-10m/min | |||
| Transport Speed | 1-50m/min | |||
| Transport Height | 550-650mm | |||
| Power Supply | ≈85kW | |||
| IG Types | Double glazing, Triple glazing, Shapes | |||
| Options | In-panel gas filling | |||
| Max Size | 1800X3600mm | 2700*3500mm | ||
✔ High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
✔ Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection
✔ Super flexible spacer applicator: precision placement of super flexible spacers at high speed for maximum output, and allows for inverse corners and variable shapes
✔ Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
✔ Integrated with automatic loading/unloading systems to enable complete production line automation, minimization of manual labour and improving efficiency dramatically
✔ Configurable for both super flexible spacers and conventional aluminium spacers, enabling convenient switches
✔ Spacer storage accommodating two types of spacers for flexible production
✔ Single-piece pressing panel design ensuring even and consistent pressing flatness
