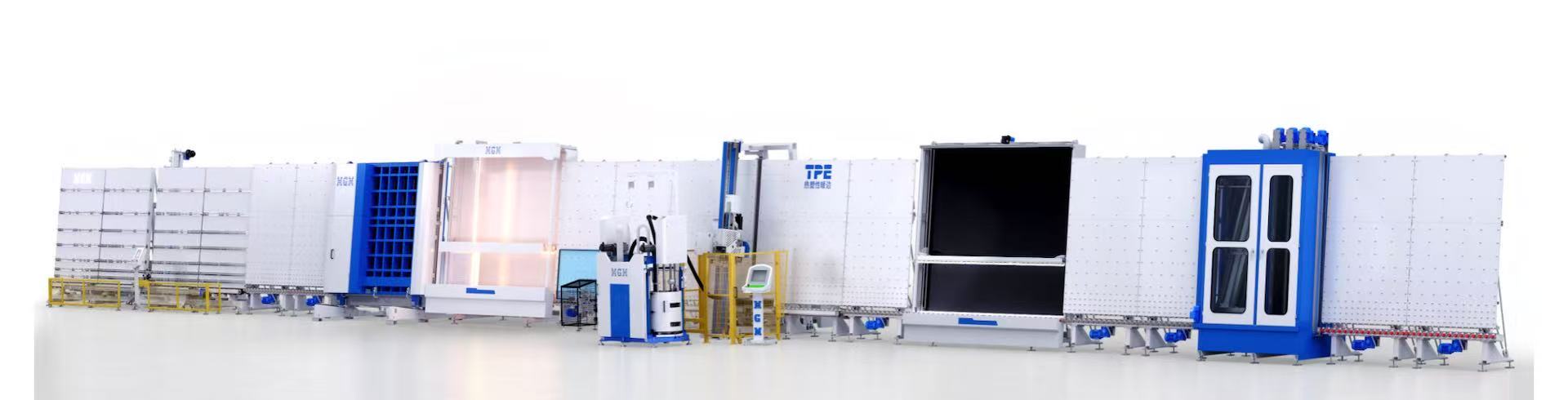

Fully Automatied Thermoplastic Warm Edge Spacer (TPE) Insulating Glass Production is MGM's core product. This insulating glass production line provides a solution only requried one operator. Boost your insulating glass unit (IGU) performance with our specialized TPE Insulating Glass Production Line. This automated line is engineered to seamlessly applying Thermoplastic Warm Edge (TPE) spacer, the advanced warm edge solution. It ensures precise spacer application, automatic corner (including inverse corner) bending, and robust sealing, significantly enhancing thermal efficiency. By minimizing heat loss and preventing condensation, our TPE insulating glass production line helps you manufacture IGUs with superior U-values for energy-efficient buildings. It's the ideal, future-proof choice for producing durable, high-performance windows that meet stringent environmental standards, giving you a competitive edge in the green building market.
| Technical Data | ||||
| Glass Thickness | 3-18mm | |||
| Spacer Width | 5-19mm | |||
| Spacer Thickness | 5.8mm/6.8mm/7.8mm | |||
| IG Thickness | ＜56mm | |||
| Washing Speed | 1-10m/min | |||
| Tranpsport Speed | 1-50m/min | |||
| Transport Height | 550-650mm | |||
| Power Supply | ≈120kW | |||
| IG Types | m/min | |||
| Model | TPE27/35 | TPE18/36 (Double Conveyor System) | ||
| Min Size | 180X360mm | 160*310mm | ||
| Max Size | 2700X3500mm | 1800*3600mm | ||
| Options | In-panel gas filling | Double Conveyor System | ||
✔ High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
✔ Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection
✔ TPE applicator: precision application of TPE materials at high speed for maximum output, application nozzle allows for inverse corners and variable shapes
✔ Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
✔ Integrated with automatic loading/unloading systems to enable complete production line automation, minimization of manual labour and improving efficiency dramatically
✔ Configurable for both TPE warm-edge spacers and conventional aluminium spacers, enabling convenient switches
✔ Servo-controlled TPE dispensing nozzle ensuring precised application
✔ Dual feeding mechanism for TPE materials supporting non-stop production during changeovers
✔ Front and rear double conveyor system enabling glass transfer on the rear plate during TPE application on the front
✔ Adjustable panel design maintaining long-term lamination pressure accuracy
