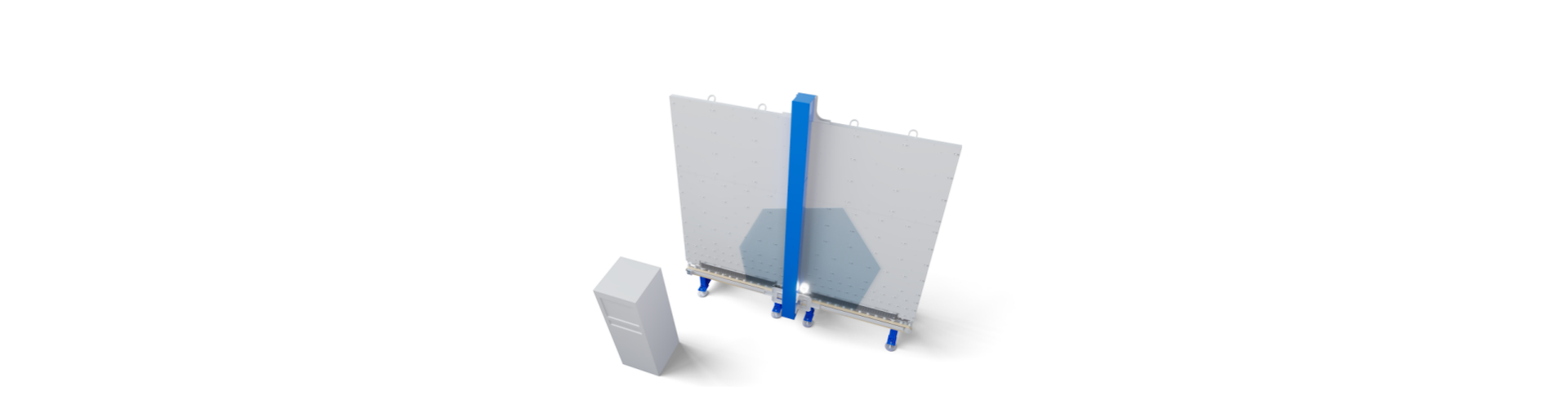

Shaped Glass Detection System

The MGM Special-Shaped Glass Inspection System leverages state-of-the-art machine vision technology to perform automated, high-precision quality control on non-rectangular, curved, and intricately cut glass. Manual inspection of such complex shapes is slow, subjective, and prone to error, but our system eliminates these bottlenecks by providing fast, objective, and 100% consistent inspection for every single piece.

This system typically utilizes high-resolution, multi-axis cameras strategically positioned to capture the entire contour and surface of the glass. Advanced software algorithms then compare the captured image against a digital CAD blueprint of the perfect part. It performs a multitude of checks with pixel-level accuracy, including: Dimensional & Geometric Verification: Measuring the overall shape, hole positions and diameters, and edge-to-edge dimensions to ensure it matches the design perfectly. Edge Quality Inspection: Detecting chips, cracks, and grinding defects along the entire perimeter, even on tight curves. Surface Defect Detection: Identifying scratches, inclusions, or stains on the glass surface. The system is capable of handling a vast range of shapes—from simple circles and trapezoids to complex automotive windshields. Upon detecting a defect, it can automatically signal a reject mechanism or mark the faulty piece. By integrating MGM's inspection system in your insulating glass production line, you dramatically reduce escapees (defective pieces reaching the customer), minimize scrap by catching errors early, and generate comprehensive quality reports for full traceability. This not only enhances your brand reputation for quality but also delivers substantial cost savings and operational efficiency.
